Working At Height with the:

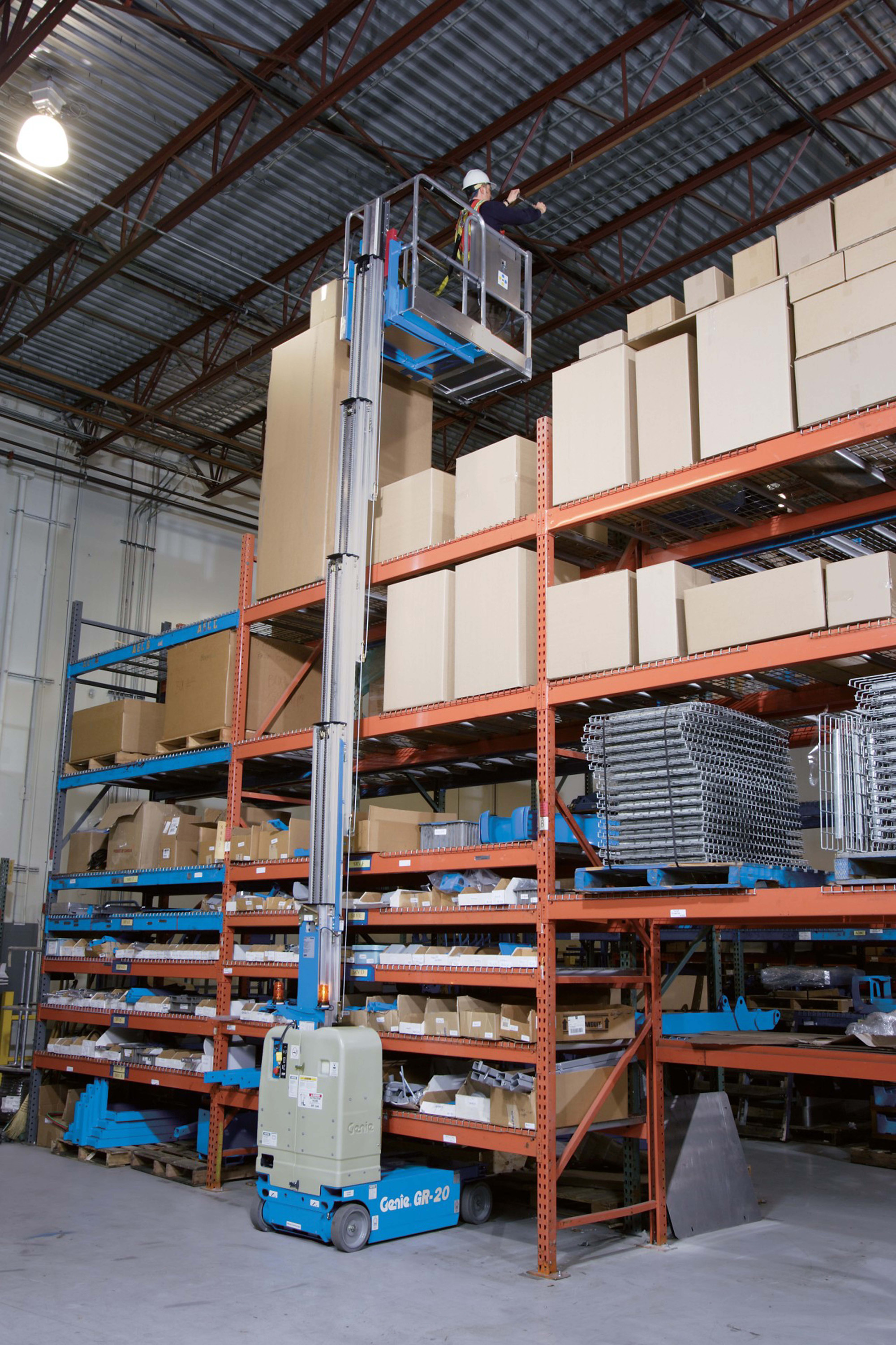

GENIE GR20 RUNABOUT ACCESS PLATFORM

The Genie Runabout range of compact self-propelled powered access platforms offer a safe and speedy means of access to high level. Solving working at height issues in many industries, ideal for work at height in schools, colleges, sports centres, shopping centres and industry in general, Genie access platforms have been designed with a knowledge of customer needs over many years and your working at height problems, so Genie aerial work platforms are access platforms that have evolved over many years of customer feedback and the Genie access platform continuous improvement programme.

Technical Capabilities

Talk to our expert team on 01483 415 410

get in touch

tell us a little about your working at height project and we will be in
touch to offer our expert advise and opinion.

Technical
Capabilities

View PDF Datasheet

PLATFORM OPTIONS
• Standard platform with gate and sliding midrail
• Extension platform with sliding midrail
• Extension platform with gate
• Stockpicker platform with dual side entry gates and adjustable tray
• Standard AWP platform with sliding midrail
• Standard AWP platform with gate
• Narrow AWP platform with gate

POWER
• 24V (four 6V 225 Ah batteries)

TYRE
• Non-marking solid tyres

GENIE GR-20 ACCESS PLATFORM SPECIFICATION
• 8.07 m (25 ft 11 in) working height
• 6.07 m (19 ft 11 in) platform height
• Up to 159 kg (350 lb) lift capacity

GENIE GR-20 ACCESS PLATFORM FEATURES
• Standard platform with sliding midrail
• Auxiliary platform lowering
• Low 15 in (.38 m) platform entry height
• Patented rigid mast system
• Ground clearance 2.5 inches (stowed)
• Fully proportional lift and drive controls
• Battery charge indicator
• Onboard diagnostic system
• AC power to platform
• Descent and tilt alarm
• Zero inside turning radius
• Dual wheel brakes
• Hydraulic brake release
• Pothole protection
• Hinged rear covers for easy access to all major electrical and hydraulic
components
• Tie down attachment points
• Large forklift pockets access
• Non-marking solid tires

POWER
• Automatic 25 amp battery charger

GENIE GR-20 ACCESS PLATFORM OPTIONS AND ACCESSORIES PLEASE SEE PDF DATASHEET
